CUPACLAD® reinvents the traditional technique for placing natural slate, offering greater simplicity and significant savings in installation times.

CUPACLAD INSTALLATION

101 Series installation

Slates are fixed using our specially designed screws self-drilling to ensure optimal installation while remaining completely invisible to minimize design impact.

Screws are made of stainless steel with a large flat head that enables an easier and more secure fixing.

101 SERIES

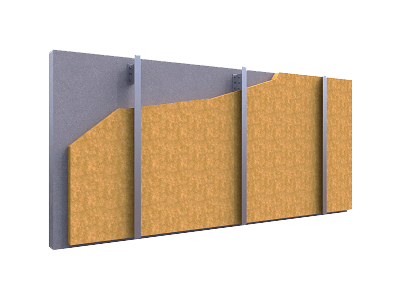

1 Fixing the secondary substructure and the insulation material

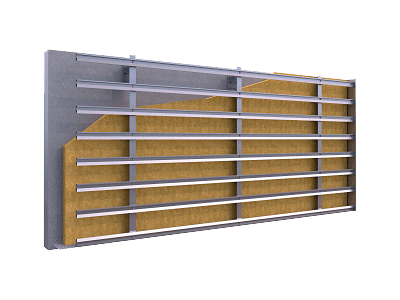

2 Fixing the CUPACLAD® 101 horizontal profiles

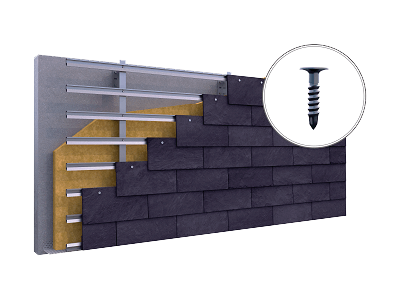

Fixing the slates with the self-drilling CUPACLAD® 101 screw

201 series installation

CUPACLAD® 201 Vanguard stainless steel clips have been designed by our R&D department.

Every slate is fixed to the horizontal profile using two clips that remain partially visible once the system is installed.

201 SERIES

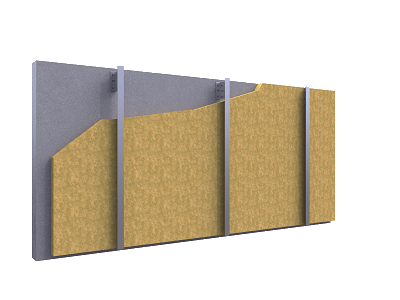

1 Fixing the secondary substructure and the insulation material

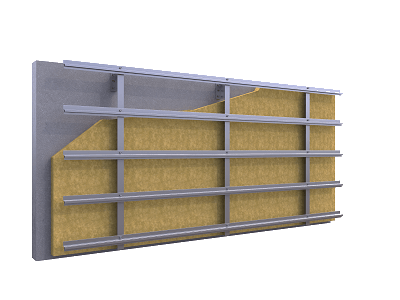

2 Fixing the CUPACLAD® 201 Vanguard horizontal profiles.

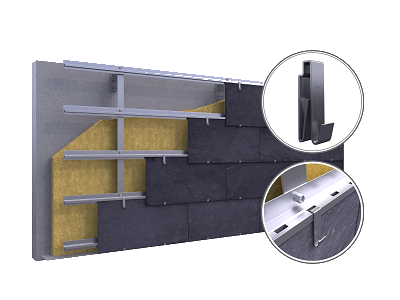

3 Fixing the slates with the special CUPACLAD® 201 Vanguard clips
